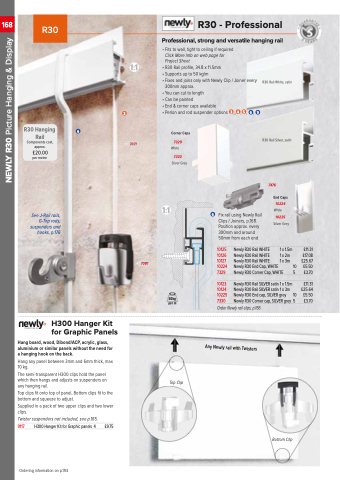

Page 168 - Lion - Trade 56

168
R30
R30 - Professional
Professional, strong and versatile hanging rail
• Fits to wall, tight to ceiling if required
Click More Info on web page for
Project Sheet
• R30 Rail profile, 34.8 x 11.5mm
• Supports up to 50 kg/m
• Fixes and joins only with Newly Clip / Joiner every
R30 Rail White, satin
R30 Rail Silver, satin
7476
End Caps
10224
White
10225
Silver Grey
10125 Newly R30 Rail WHITE
10126 Newly R30 Rail WHITE
10127 Newly R30 Rail WHITE
10224 Newly R30 End Cap, WHITE 7329 Newly R30 Corner Cap, WHITE
10123 Newly R30 Rail SILVER satin 1 x 1.5m
10124 Newly R30 Rail SILVER satin 1 x 3m
10225 Newly R30 End cap, SILVER grey 7330 Newly R30 Corner cap, SILVER grey
Order Newly rail clips, p.166
3
300mm approx.
• You can cut to length
• Can be painted
• End & corner caps available
• Perlon and rod suspender options
3 ,, 4 , 5 ,
6 , 9
R30 Hanging Rail
Components cost, approx.
£20.00 per metre
See J-Rail rails, G-Top rods, suspenders and hooks, p.176
6
Corner Caps
7329
White
7330
Silver Grey
7071
6 Fix rail using Newly Rail Clips / Joiners, p.168. Position approx. every 300mm and around 50mm from each end
7081
1x 1.5m 1x 2m 1x 3m
£11.31 £17.08 £25.67 10 £5.50
50kg
per m
5
10 5
£3.70
£11.31 £25.64 £5.50 £3.70
en w l y n CONNECTING ART
H300 Hanger Kit for Graphic Panels
Hang board, wood, Dibond/ACP, acrylic, glass, aluminium or similar panels without the need for a hanging hook on the back.
Hang any panel between 3mm and 6mm thick, max 10 kg.
The semi-transparent H300 clips hold the panel which then hangs and adjusts on suspenders on any hanging rail.
Top clips fit onto top of panel, Bottom clips fit to the bottom and squeeze to adjust.
Supplied in a pack of two upper clips and two lower clips.
Twister suspenders not included, see p.165.
9117 H300 Hanger Kit for Graphic panels 4 £9.75
Top Clip
Ordering information on p.193
Bottom Clip
NEWLY R30 Picture Hanging & Display
Any Newly rail with Twisters
