Ask for a quote for a system to meet your specific needs
System Controller

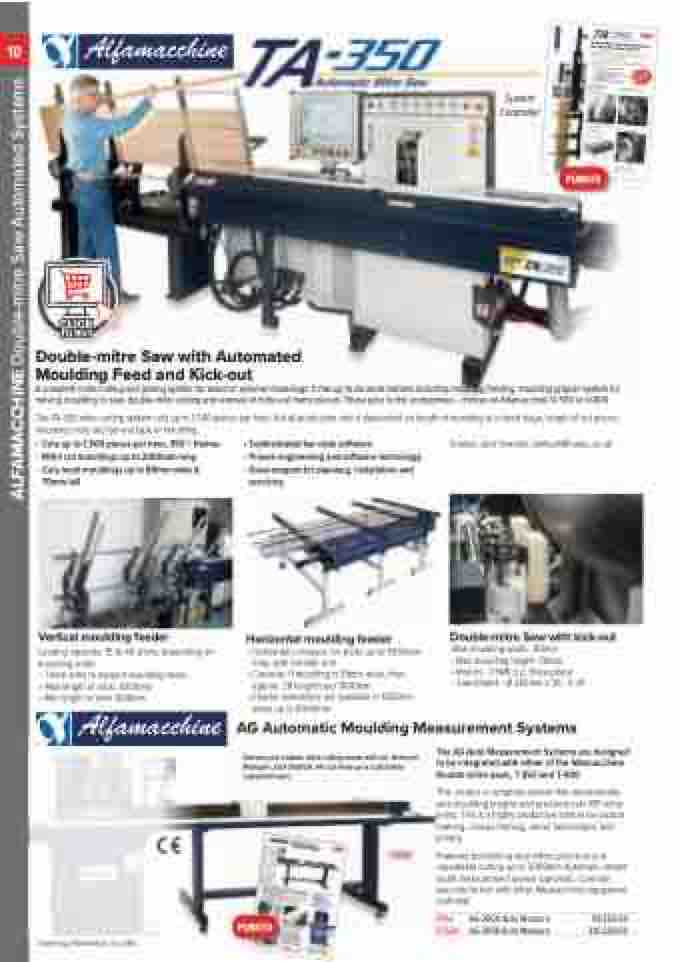

Double-mitre Saw with Automated
Moulding Feed and Kick-out
A complete mitre cutting and joining system for wood or polymer mouldings. It has up to six work stations including moulding feeding, moulding gripper system for moving moulding to saw, double-mitre cutting and removal of mitre-cut frame pieces. These pass to the underpinner - choose an Alfamacchine U-500 or U-600.
The TA-350 mitre cutting system cuts up to 1,500 pieces per hour. Actual production rate is dependent on length of moulding at in-feed stage, length of cut pieces, moulding cross section and type of moulding.
• Cuts up to 1,500 pieces per hour, 350 + frames • Mitre cut mouldings up to 2000mm long
• Cuts most mouldings up to 80mm wide &
70mm tall
Vertical moulding feeder
Loading capacity: 15 to 40 sticks, depending on moulding width
• Three arms to support moulding sticks
• Max length of stick: 3000mm
• Min length of stick 1200mm
Ordering information on p.193
• Sophisticated bar code software
• Proven engineering and software technology • Great support for planning, installation and
servicing
Horizontal moulding feeder
• Horizontal conveyor, for sticks up to 3000mm long, with transfer arm
• Capacity: If moulding is 35mm wide, then approx. 28 lengths per 1000mm
• Feeder extensions are available in 1000mm steps up to 6000mm
Contact Jack Siwinski, liontech@lionpic.co.uk
AG Automatic Moulding Measurement Systems
Double-mitre Saw with kick-out
Max moulding width - 80mm
• Max moulding height -70mm
• Motors - 1.5kW x 2, three phase
• Saw blades - Ø 350mm x 30, 2 off
Discuss your volume mitre cutting needs with our Technical Manager, Jack Siwinski. He can draw up a customised equipment spec.
9762
The AG Auto Measurement Systems are designed to be integrated with either of the Alfamacchine Double-mitre saws, T-350 and T-400.
This creates a complete system that automatically sets moulding lengths and precisely cuts 45o mitre joints. This is a highly productive system for picture framing, canvas framing, mirror fabrications and joinery.
Powered positioning stop offers precision and repeatable cutting up to 2000mm Automatic rebate width measurement device (optional). Common barcode format with other Alfamacchine equipment (optional)
9762 AG-2000 Auto Measure £9,250.00 9762A AG-3000 Auto Measure £10,220.00
Moulding Feeder - choose Vertical or Horizontal Moulding Gripper
System Controller Double-mitre Saw
Kick-out Conveyor
Vertical Mitre Saw with Automated Moulding Feed and Kick-out
A complete mitre cutting and joining system for wood or polymer mouldings. It has up to six work stations including moulding feeding, moulding gripper system for moving moulding
to saw, double-mitre cutting and removal of mitre-cut frame pieces. These pass to the underpinner - choose an Alfamacchine U-500 or U-600.
The TA-350 mitre cutting system cuts up to 1,500 pieces per hour. Actual production rate is dependent on length of moulding at in-feed stage, length of cut pieces, moulding cross section and type of moulding.
+ Cuts up to 1,500 pieces per hour, enough for 350 + frames
+ Mitre cut mouldings up to 2000mm long
+ Cuts most mouldings up to 80mm wide & 70mm tall + Sophisticated bar code software
+ Proven engineering and software technology
+ Great support for installation and servicing
Process steps:
Step 1 - Moulding Feeders
Step 2 - Moulding Gripper System
Choose vertical or horizontal
Grabs moulding to continually feed sticksl to double mitre saw
Vertical moulding feeder
• Three arms to support moulding sticks
• Loading capacity: 15 to 40 sticks, depending on
Step 3 - Double-mitre Saw
moulding width
• Max length of stick: 3000mm • Min length of stick 1200mm
Horizontal moulding feeder
• Horizontal conveyor, for sticks up to 3000mm long, with transfer arm
• Max moulding width - 80mm
• Max moulding height -70mm
• Motors - 1,5 kW x 2, three phase
• Saw blades - Ø 350mm x 30, 2 off
+ Capacity: If moulding is 35mm wide, then app 28 lengths per 1000mm
• Feeder extensions are available in 1000mm steps up to 6000mm
System
PUB073
V.1 07/2017
ALFAMACCHINE Double-mitre Saw Automated Systems
