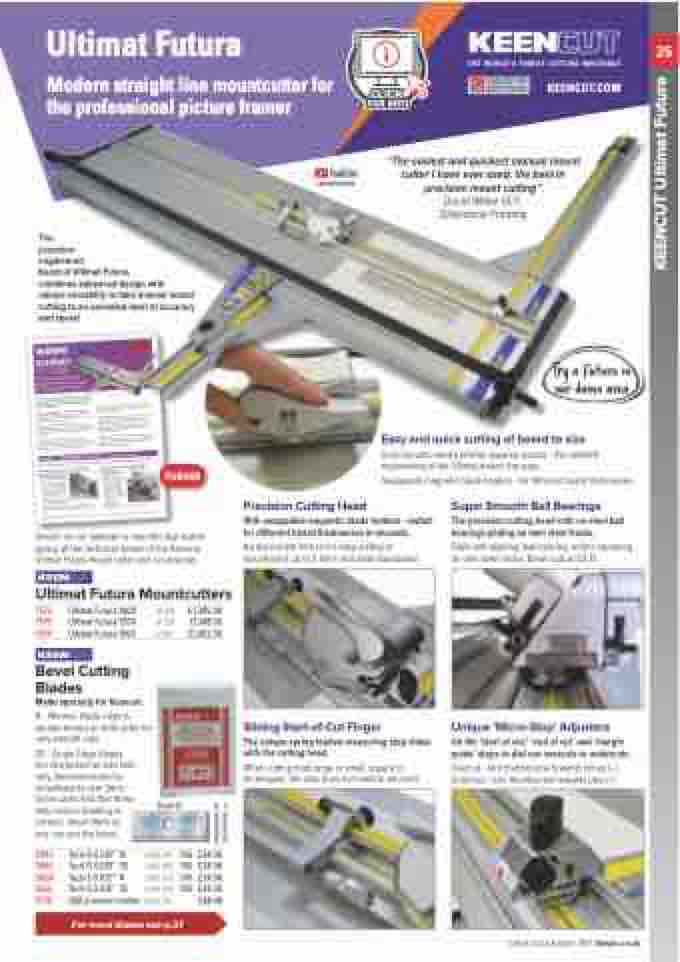

Page 25 - Lion - Trade 56

Ultimat Futura
Modern straight line mountcutter for the professional picture framer
THE WORLD’S FINEST CUTTING MACHINES KEENCUT.COM
‘‘The easiest and quickest manual mount cutter I have ever used, the best in precision mount cutting”
David Wilkie GCF,
Silverstone Framing
Try a Futura in our demo area
Easy and quick cutting of board to size
Good mounts need perfectly squared boards - the detailed engineering of the Ultimat makes this easy.
Swappable magnetic blade holders - for different board thicknesses.
The
precision
engineered
Keencut Ultimat Futura
combines advanced design with
unique versatility to take manual mount cutting to an unrivaled level of accuracy and speed
LIONPFSLTD
PU
B068
Search on our website to read this 4pp leaflet giving all the technical details of the Keencut Ultimat Futura mountcutter and accessories.
Ultimat Futura Mountcutters
Precision Cutting Head
With swappable magnetic blade holders - switch for different board thicknesses in seconds.
No discernible friction for easy cutting of mountboard up to 3.5mm and 5mm foamboard.
Super Smooth Ball Bearings
The precision cutting head rolls on steel ball bearings gliding on twin steel tracks.
Triple self-aligning, ball bearing, rollers operating on twin steel tracks. Bevel cuts at 52.5°.
7572 Ultimat Futura 1000 7573 Ultimat Futura 1200 7574 Ultimat Futura 1500
Bevel Cutting Blades
Made specially for Keencut.
N - Normal, blade edge is double-honed on both sides for very smooth cuts.
SE - Single Edge blades are sharpened on one side only. Recommended for mountboards over 3mm. Some users find that these help reduce hooking at corners. Insert them so you can see the bevel.
2493 Tech-D 0.012” N 3845 Tech-D 0.015” SE 3008 Tech-S 0.012” N 6162 Tech-S 0.015” SE 1078 080 premium blades
UF 100 UF 120 UF150
£1,345.00 £1,418.00 £1,492.00
Tech D
N S
£24.06 £24.06 £24.06 £24.06 £28.49
Sliding Start-of-Cut Finger
The unique spring loaded measuring stop slides with the cutting head.
When cutting mats large or small, square or rectangular, the stop does not need to be reset.
Unique ‘Micro-Stop’ Adjusters
On the ‘start of cut,’ ‘end of cut’ and ‘margin guide’ stops to dial out overcuts or undercuts.
Overcut - turn thumbscrew towards minus (–) Undercut - turn thumbscrew towards plus (+)
CA50 017 100 CA50 100 100 CA50 020 100 CA50 030 100 CA50 010
For more blades see p.27
Check stock & order 24/7: lionpic.co.uk
25
KEENCUT Ultimat Futura
ULTIMAT
The true professional straight-line mount cutter for the modern framer
The precision engineered Keencut Ultimat Futura combines advanced design with unique versatility to take manual mount cutting to an unrivaled level of accuracy and speed.
Keencut Futura features include the roller ‘lift and hold’, the patented Micro-Stops and the non-warp aluminium baseplate.
The superb high performance slideway and cutting head system is designed to meet the demands
The unique cutting head of the Ultimat Futura, with self-aligning ball bearing rollers, operating on twin steel tracks, delivers a sliding action that is smooth, precise and friction-free under load.
The geometry of the ergonomic head, comfortable for both left and right-handed users, also ensures that operator effort is minimal even when cutting thick
8 ply boards.
The swappable magnetic blade holders make changing blades for different depths of cut a simple operation, so necessary for the many different types of work processed in a busy framing workshop.
of framers using all types and thicknesses of mountboard. All this technology further enhances Keencut’s status as the world leader in manual mountcutter design.
With swappable magnetic blade holders - switch to cut different thicknesses of board in seconds • Ergonomically designed cutting head makes the Futura easy
The cutting head rolls on steel ball bearings gliding on twin steel tracks.
• Cutting head of the Ultimat
to use over long periods and is suitable for operation by left and right-hand. Makes both bevel and vertical cuts.
• Delivers a sliding action that is smooth, precise and with no discernible friction under load
Futura features a set of built-in self-aligning ball bearing rollers operating on twin steel tracks in
the aluminium slideway. Designed to give a lifetime of straight, accurate and silent cutting
ULTIMAT
- Outstanding Features
Specifically designed to cut the most dense of modern mountboard with ease
Beautifully Engineered Cutting Head
High Performance Ball Bearings
• Maximum operator effort is transmitted to the blade to put the cutting of even 8ply mount board within the capability of every framer.
• The ball and thrust
bearings used in the
UItimat Futura are covered by a 20-Year Guarantee.
1
The good news for owners of the original Keencut Ultimat or Ultimat Gold is that the Futura slideway, cutting head and stop system are available as a kit to retro-fit to your existing cutter.
PUB068
